2008 SUBARU IMPREZA GROUNDING KIT INSTRUCTIONS

FIRST: Organize our wires from shortest to longest.  The shortest wire will be called Wire 1, the next shortest wire will be wire 2, and so on until you get to the longest wire which will be wire 5.

There are TWO sizes of rings.  One is small, the other is Large.  The chart below shows what size rings should be on your wires for proper assembly:

Wire 1 -  The Shortest Wire = "DE" Small to Large
Wire 2 = "CD" Small to Small
Wire 3 = "BC" Large to Small
Wire 4 = "AB" Large to Large
Wire 5 - The Longest Wire = "DF" Small to Small



Index Map on the right:

Installed kit pictured below:

POINT C

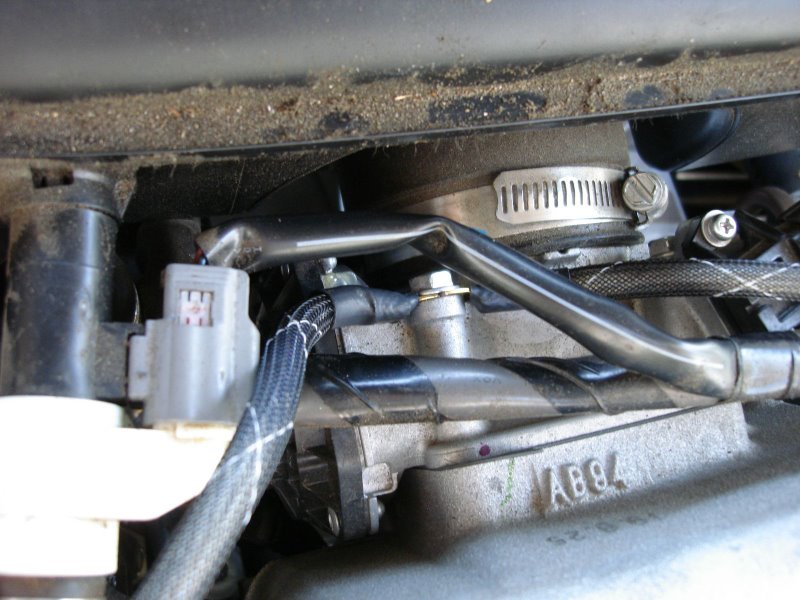

Throttle Body Connection (Point C)

Note: You may choose to cut the ring terminals if you don't want to remove the bolts all the way.

POINT D

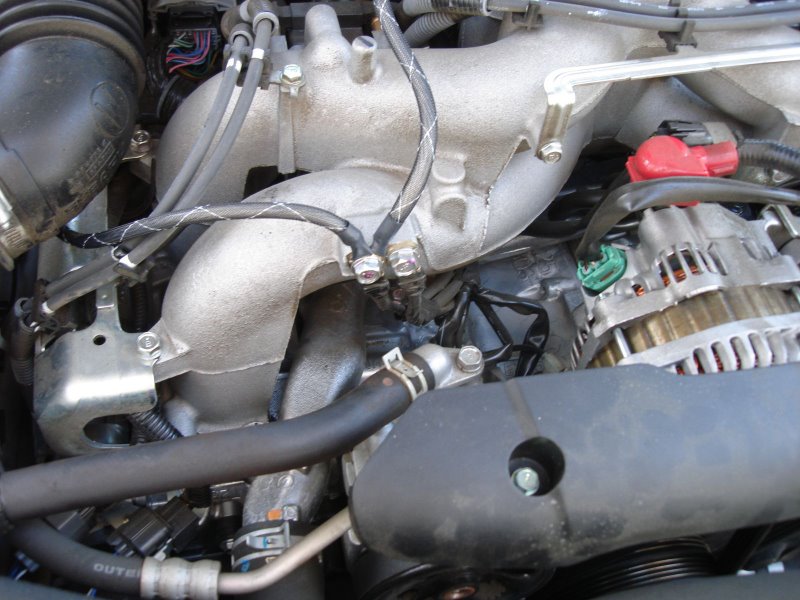

Driver Side Intake Manifold Connection (Point D)

Note: There are 3 grounding wires connecting to this point so don't tighten until all three wires are attached.

POINT B

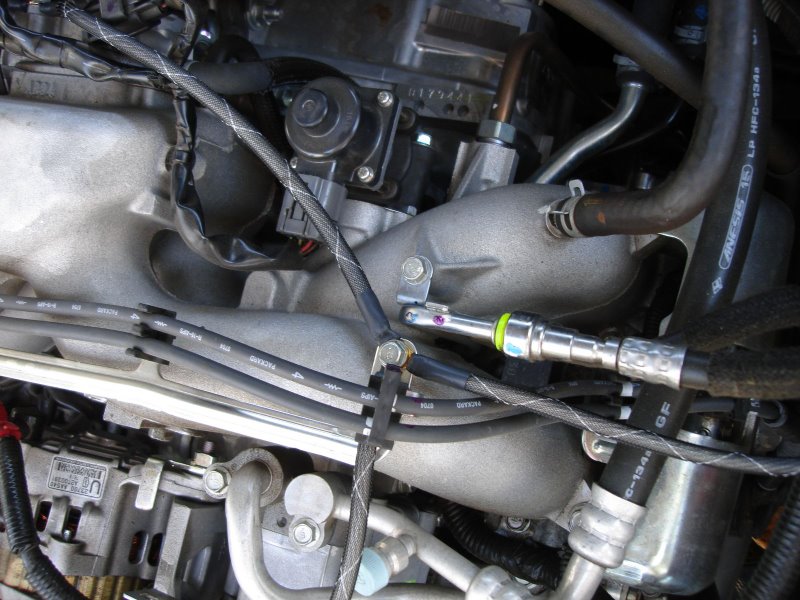

Passenger Side Intake Manifold (Point B):

POINT A

Passenger Side Chassis Ground Near Strut (Point A)

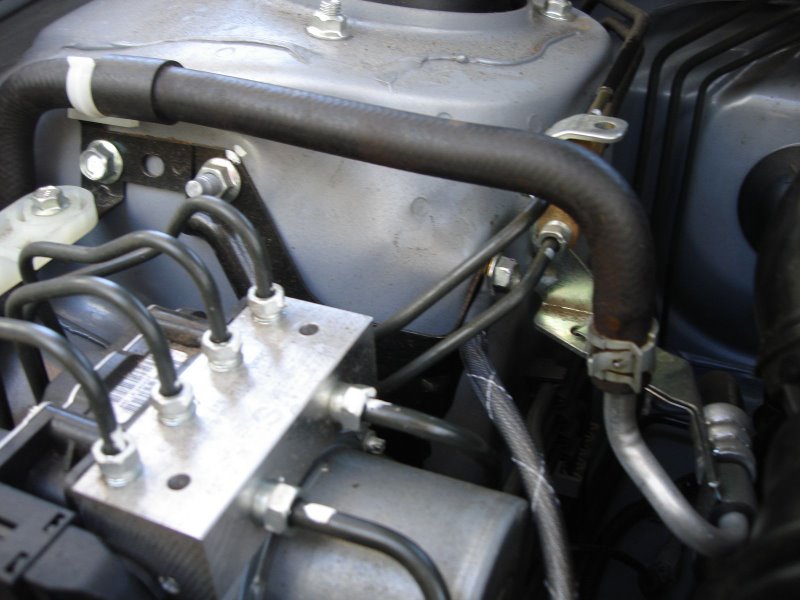

Close Up shot of Passenger Side Chassis Connection (Point A):



POINT F

Negative Battery Connection Point (Point F):



POINT E

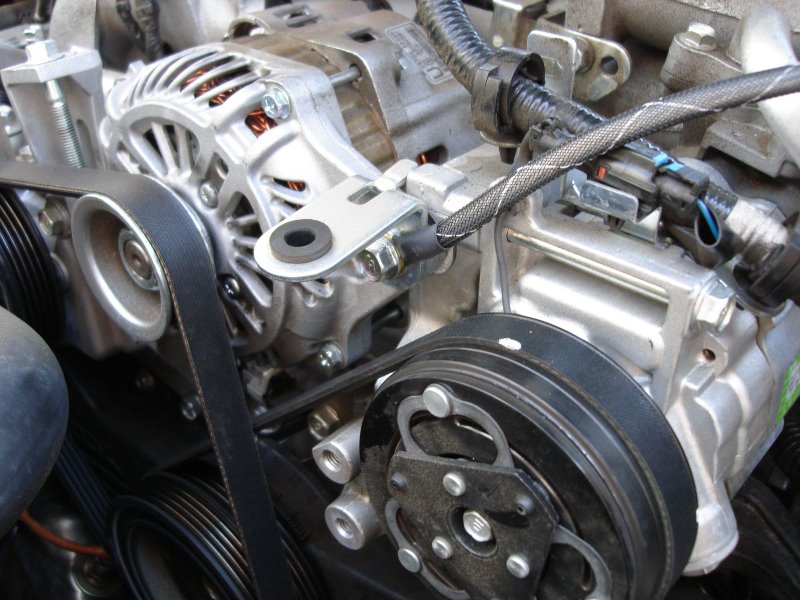

Alternator Ground. (Point E)

Note: You will have to remove the black plastic cover to access this grounding point.  Keep the grounding wire away from the belts and secure with our included releasable cable ties.
