MAZDA6 V6 GROUNDING KIT (Fitted car is a stock 05 Mazda6S V6)

Please use these online images to verify fitment and install your grounding kit.  You must remove the engine cover, please research how to do this as you may need a socket wrench and extension to do so.

Wires in picture are red standard wires for illustration clarity.  Actual grounding kit to vary in color specified at checkout.

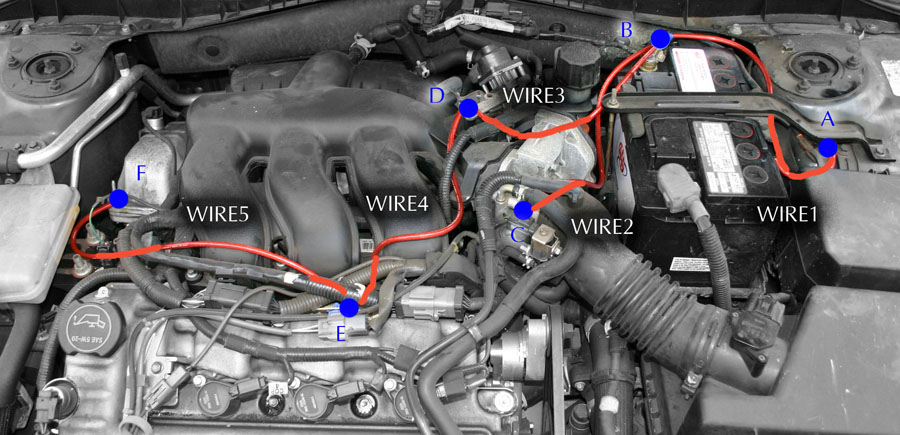

Blue circles surround the bolts to attach the wires to.

Organize your wires from longest to shortest and use the list below to determine which wire goes where:

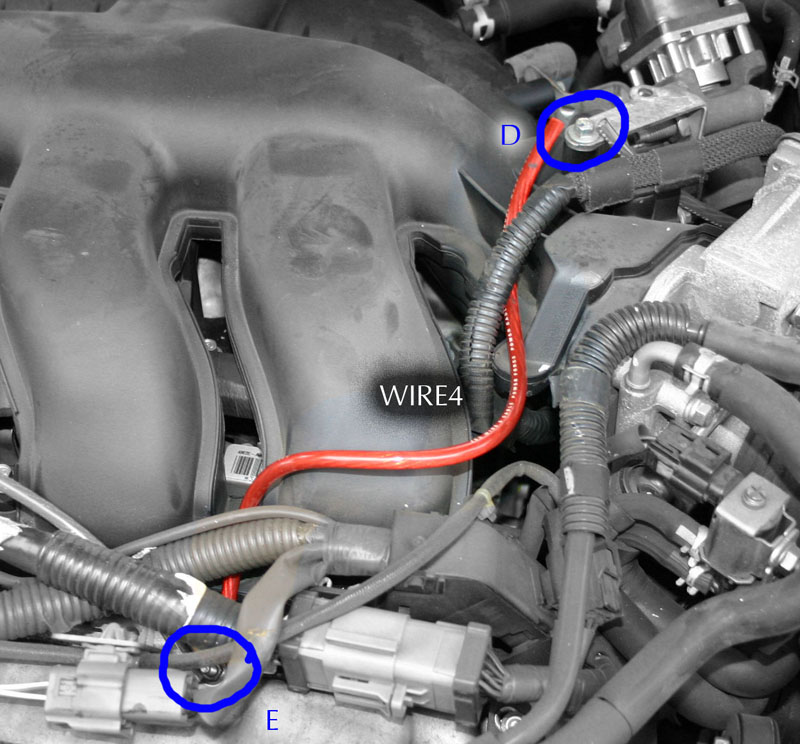

WIRE 4 = shortest wire

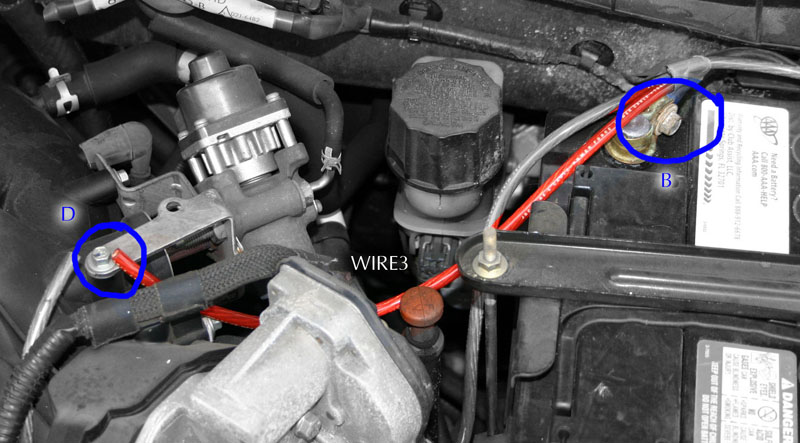

WIRE 3 = short wire

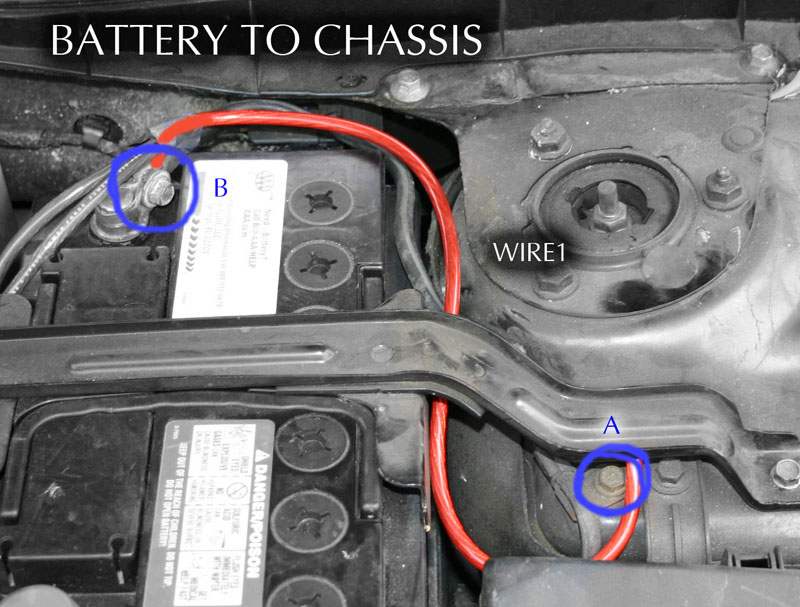

WIRE 1 = medium length wire

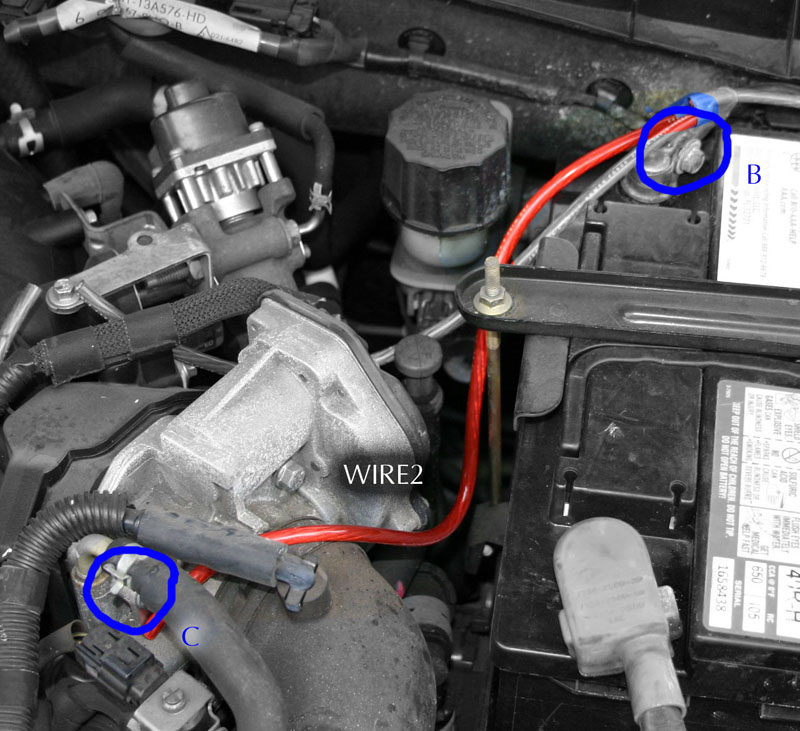

WIRE 2 = Second longest wire

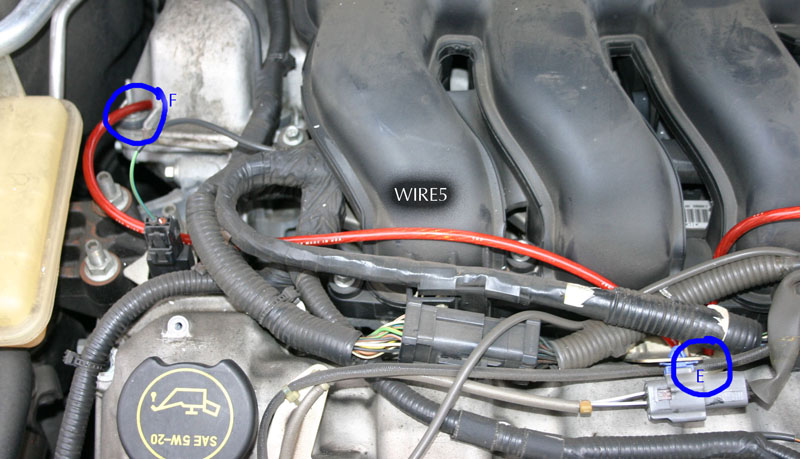

WIRE 5 = Longest Wire
